Key specifications
- Body / Material
- PEEK
- liquid junction core
- microporous ceramic filter core
- filling solution
- 1M KOH
- Reference Potential
- +0.098 V vs. NHE (Normal Hydrogen Electrode) at 25°C in 1M KOH
- potential stability
- <5 mV
- operating temperature
- 0-40 deg C
Full details in the Specifications tab below.

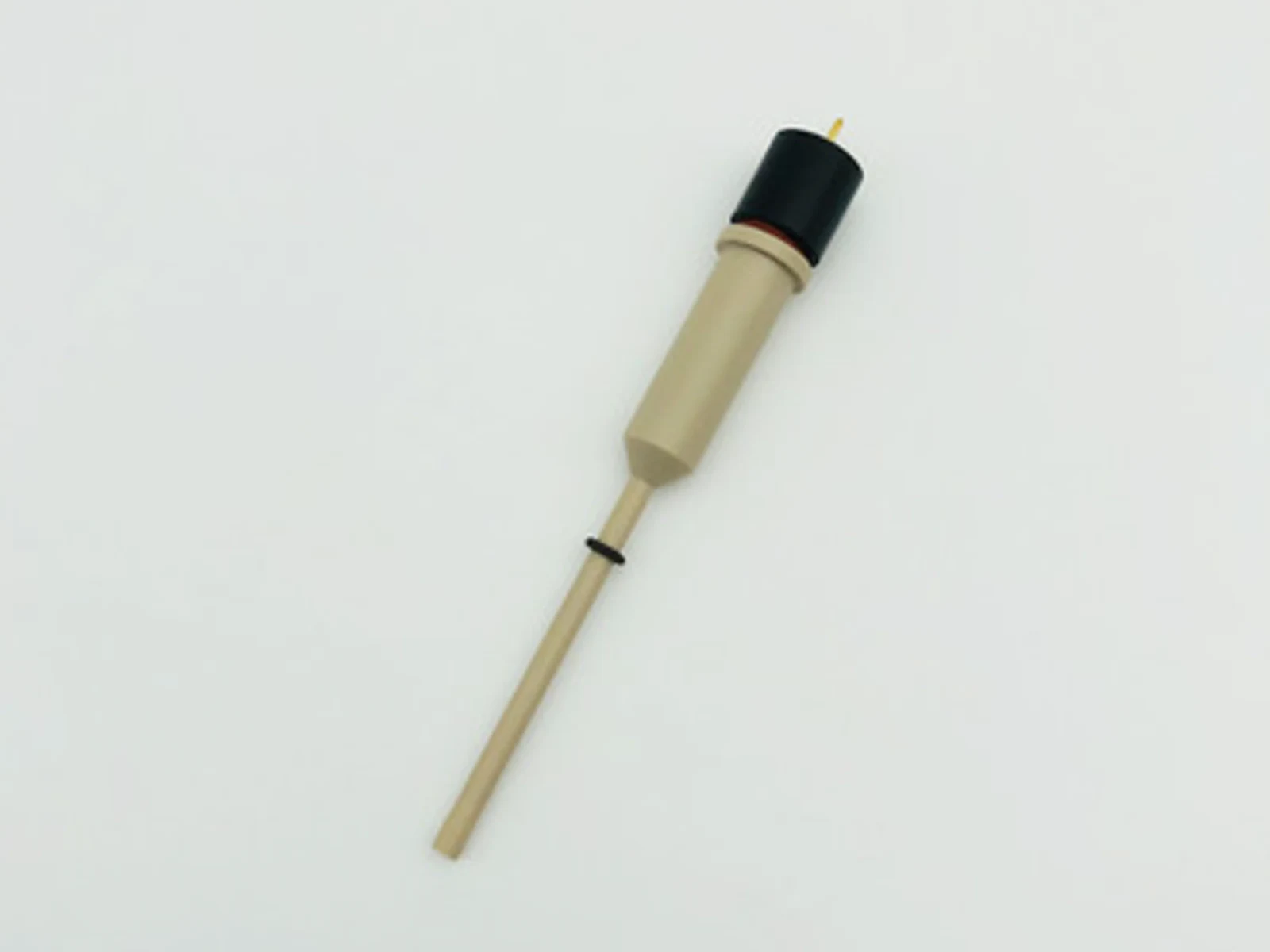

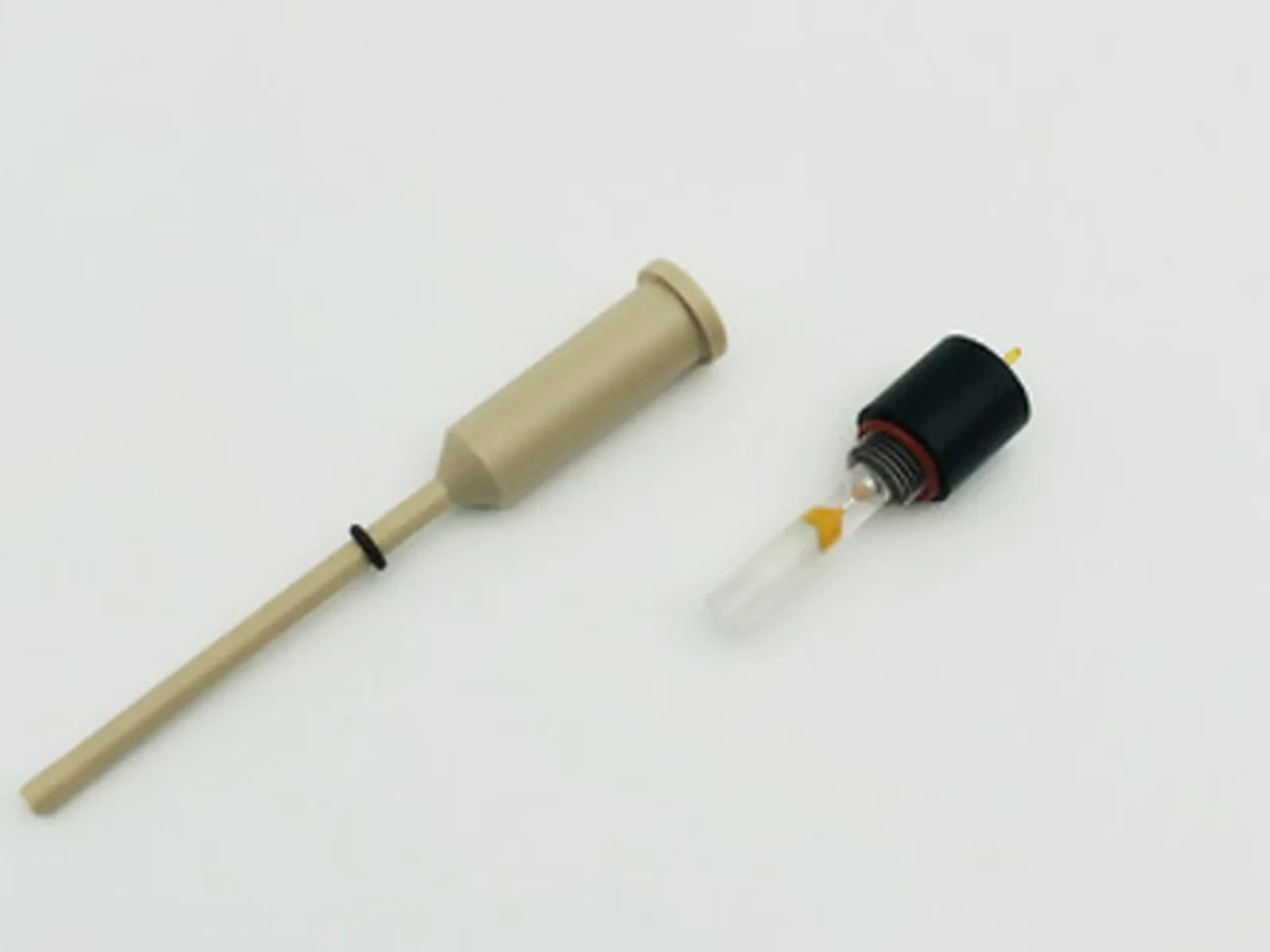

Mercury Oxide Reference Electrode Hg/HgO
In stock · Ships in 1–2 weeks
GST invoice · Secure checkout · Datasheet on request
Available sizes1
Pick a size, then request a quote — we'll confirm price & lead time.
Description
The Hg/HgO Reference Electrode is specifically engineered for alkaline electrochemical systems where stable potential control is critical. Utilizing the mercury/mercury oxide equilibrium, it delivers highly reproducible reference potentials in potassium hydroxide and other alkaline electrolytes.
The Hg/HgO Reference Electrode is specifically engineered for alkaline electrochemical systems where stable potential control is critical. Utilizing the mercury/mercury oxide equilibrium, it delivers highly reproducible reference potentials in potassium hydroxide and other alkaline electrolytes.
Engineered for laboratory and industrial use. Contact us for custom specifications, bulk quantities, or application guidance.
What you get
- 1 × Mercury Oxide Reference Electrode Hg/HgO
- Test/QC certificate on request
- GST invoice
